Add Live Tennis app

[bensynapse]

Live Tennis

Adds apps/livetennisscores — live, point-by-point tennis scores for the ATP, WTA,
Challenger and ITF tours, one match per page.

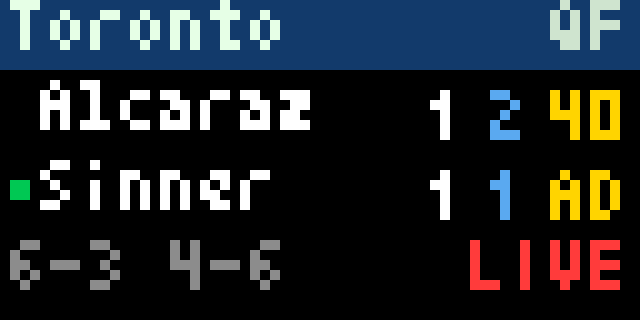

Animated 640x320 render (pixlet render --gif --magnify 10) attached in a comment below.

+----------------------------------+
| Toronto                       QF |  tournament + round; bg colour = tour
|   Alcaraz                1  2 40 |  sets won / games this set / current point
| * Sinner                 1  1 AD |  green dot = this player is serving
| 6-3 4-6                     LIVE |  completed sets          live / tiebreak
+----------------------------------+

What it shows

• The current point (0 / 15 / 30 / 40 / AD) — updated live, in yellow.
• Live tiebreak scores — the point column turns orange and the status reads TB.
• Sets won (white) and games in the current set (blue), aligned in columns across both rows.
• A green dot next to whoever is serving.
• Completed sets summarised along the bottom (6-3 4-6), width-budgeted so an extended
  final set can't overflow.
• The header background identifies the tour at zero pixel cost: blue = ATP,
  magenta = WTA, brown = Challenger, grey = ITF.

Settings

Field	Type	Notes
API key	schema.Text	Free key, 1,000 requests/day: https://livetennisapi.com/subscribe/free
Tour	schema.Dropdown	All / ATP / WTA / Challenger / ITF
Rotation speed	schema.Dropdown	3–6 s per match
Show rankings	schema.Toggle	Off by default

How it differs from the existing ATP Tennis / WTA Tennis apps

Those apps are ESPN-backed and show per-set game scores for a tournament you pick
from a dropdown, plus completed and upcoming matches — and they do that well. This app
is deliberately narrower and deeper: it shows the in-game state (current point and
live tiebreak score) that ESPN's linescores doesn't carry, across all four tours in
one app with no tournament to choose. They're complementary; I'd expect people to run
both.

Request rate

One http.get per render with ttl_seconds = 120, using Pixlet's built-in HTTP cache
(no cache.star). That's a ceiling of 86400 / 120 = 720 upstream requests/day per
key+tour combination, inside the free tier's 1,000/day.

Error and empty states

Every path renders something readable rather than failing: no key configured
(NEED A KEY), HTTP 401 (BAD KEY), HTTP 429 (OVER QUOTA), any other non-200
(API ERROR + the status code), an unexpected body (BAD DATA), no live matches
(NO MATCHES + the selected tour), an unfilled draw slot (TBD) and a match that
hasn't started scoring yet (About to start).

Verification

• pixlet check apps/livetennisscores — passes (pixlet v0.34.0, matching PIXLET_VERSION).
• pixlet format and pixlet lint — clean.
• Render time measured at ~0.03 s against the 1 s limit. The onboarding/error screens
  are deliberately static rather than scrolling; an earlier marquee version measured
  0.6–0.8 s, uncomfortably close to the cap on a cold CI runner.
• Every render path (live multi-match rotation, single match with the scrolling header,
  live tiebreak, null player name, null score, rankings toggle, empty result, HTTP 401,
  malformed body) was rendered against recorded fixtures served from localhost and
  the resulting frames were inspected individually. The screenshot above comes from
  those fixtures, not from live data.

Disclosures

• Vendor relationship: I am affiliated with the Live Tennis API
  (livetennisapi.com), the data source this app uses. I'm submitting it as a community
  app, not as an ad — it's free-tier only, there's no paid upsell in the app, the user
  brings their own key, and I've tried to be even-handed above about what the existing
  ATP/WTA Tennis apps already do better. Happy to adjust the wording, the name, or drop
  it entirely if a vendor-authored app isn't something you want in the repo.
• No embedded key. I deliberately did not ship an encrypted vendor key via
  pixlet encrypt / secret.decrypt, because a single shared key would blow through the
  1,000/day free tier the moment more than a handful of devices installed the app. If
  you'd prefer the app to work out of the box, I can provision a high-quota key for
  Tidbyt and add it that way — just say the word.
• AI assistance: this app was written with AI assistance (Claude). I've reviewed
  every line, and everything claimed above was verified by actually running
  pixlet check / pixlet format / pixlet lint and by rendering and viewing each
  state, not by assuming. I couldn't find any policy on AI-assisted contributions in
  CONTRIBUTING.md, the CLA, or tidbyt.dev, so I'm disclosing it unprompted; tell me if
  that's a problem.
• One implementation note for review: main() reads an un-documented config key
  dev_api_base, which is not in the schema and is accepted only if it points at
  http://127.0.0.1: or http://localhost:. It exists so pixlet render can be pointed
  at a local fixture server to test the render paths without a live match or a real key.
  It can't redirect a real installation's traffic anywhere. Happy to remove it if you'd
  rather it wasn't there.

I have read the CLA Document and I hereby sign the CLA

[tidbyt]

⚠️ The automated review process is experimental and likely has bugs. Please bear with us as we iron out the kinks and enable you to ship changes at high velocity 🚀

Next Steps

Hello! Thank you so much for your change 🤜 🤛 . There are a few things you need to do:

• Sign the CLA if you haven't already
• Ensure your build is green! Any problem will display a proposed solution to try out
• Get a review, either by Tidbyt Bot or by a Tidbyt engineer

Manual Review Required

Hang tight! A Tidbyt engineer will be by shortly to review your change. Here is what they will be looking for:

	Test	Details
✅	App Dir	All files are in a single app directory
🟡	Modules	Usage of http.star requires review
✅	Original Author	The original author matches the PR author

[tidbyt-bot]

CLA Assistant Lite bot All contributors have signed the CLA ✍️ ✅

[bensynapse]

Here's the animated render, as the checklist asks for — pixlet render --gif --magnify 10, 640×320, 4 frames:

A note on why it's linked rather than attached: this repo gitignores *.gif, so it can't ride along in the PR itself, and I'm submitting via CLI rather than the web UI. It's hosted from a branch on my own fork of this repo, so nothing third-party is involved — happy to re-attach it inline if you'd prefer.

Frames, in order: a live ATP match at deuce with the serving dot, the same match after a point, a WTA tiebreak, and the no-live-matches state.

[bensynapse]

I have read the CLA Document and I hereby sign the CLA

[bensynapse]

recheck

[bensynapse]

Checking in after three weeks — everything on the submission checklist is done from my side: CI green, CLA signed, and the animated render posted above. The automated reply mentioned a Tidbyt engineer would come by, so this is just a polite bump to keep it from drifting toward the stale-bot window. Happy to make any changes review turns up.
